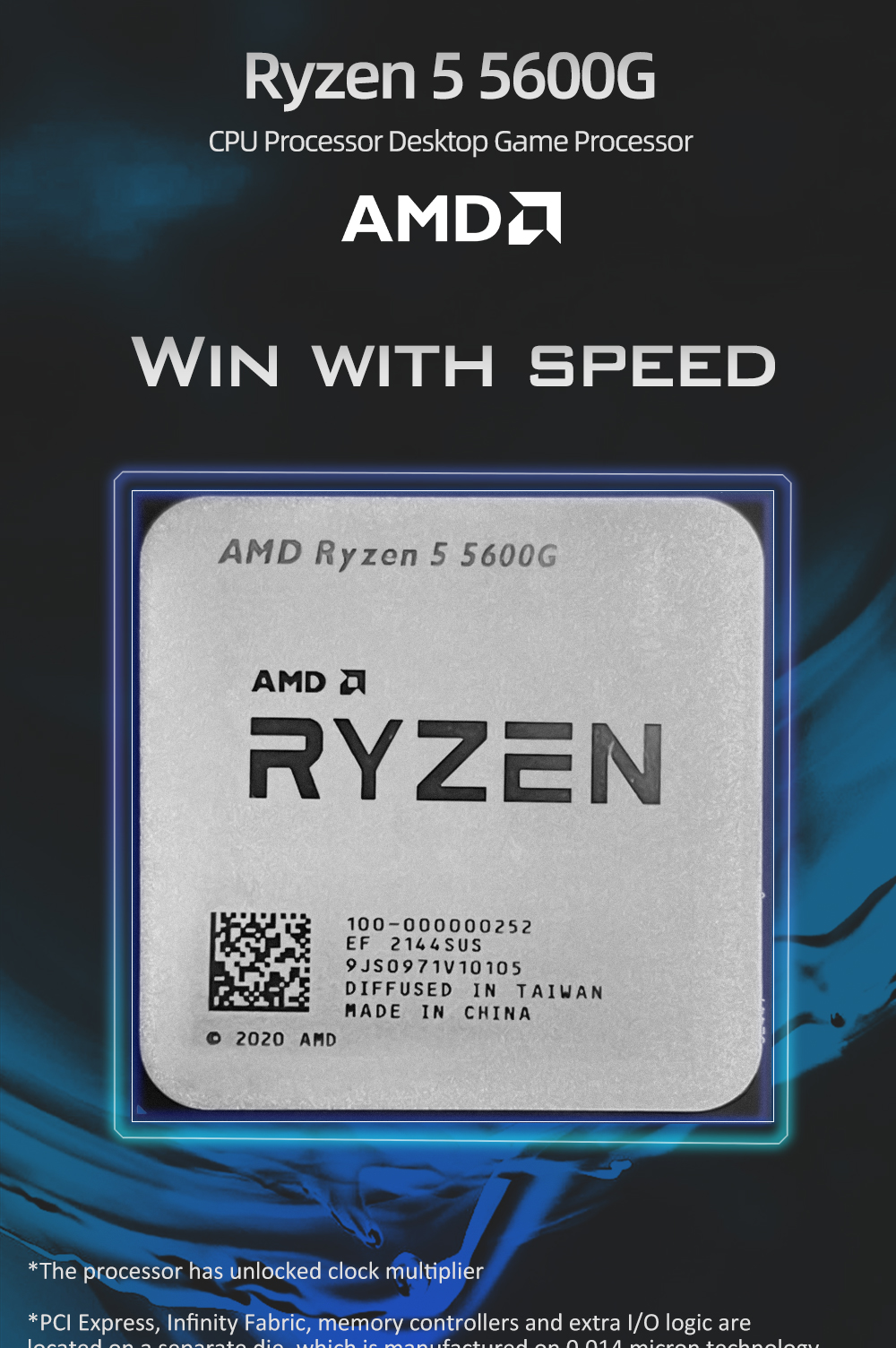

AMD New Ryzen 5 5600G R5 5600G CPU New Game Processor Socket AM4 3.9GHz Six-Core Twelve-Thread 65W DDR4 Desktop Accessories

AMD New Ryzen 5 5600G R5 5600G CPU New Game Processor Socket AM4 3.9GHz Six-Core Twelve-Thread 65W DDR4 Desktop Accessories

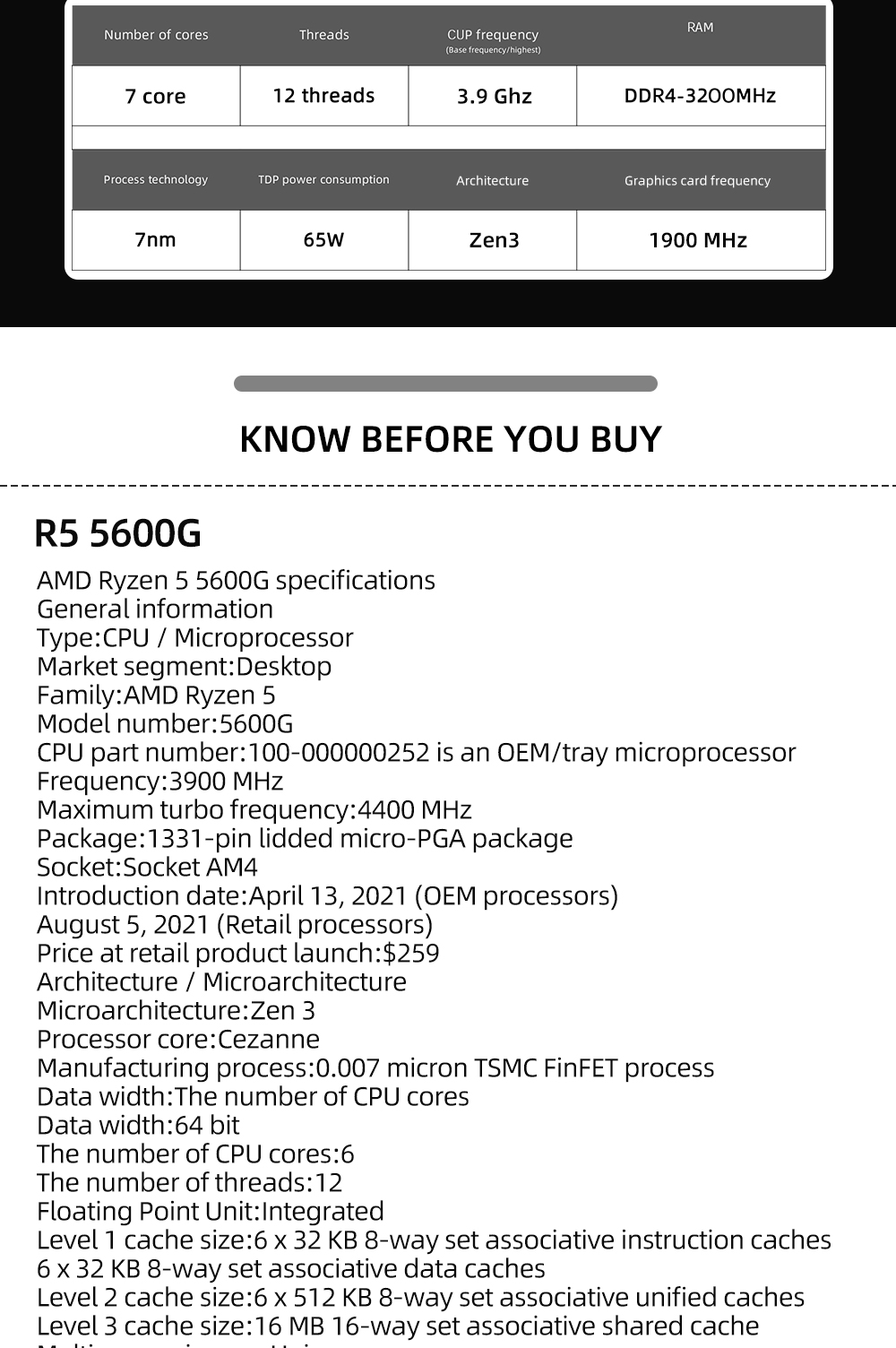

AMD Ryzen 5 5600G specifications

General information

Type:CPU / Microprocessor

Market segment:Desktop

Family:AMD Ryzen 5

Model number:5600G

CPU part number:100-000000252is an OEM/tray microprocessor

Frequency:3900 MHz

Maximum turbo frequency:4400 MHz

Package:1331-pin lidded micro-PGA package

Socket:Socket AM4

Introduction date:April 13, 2021 (OEM processors)

August 5, 2021 (Retail processors)

Price at retail product launch:$259

Architecture / Microarchitecture

Microarchitecture:Zen 3

Processor core:Cezanne

Manufacturing process:0.007 micron TSMC FinFET process

Data width:The number of CPU cores

Data width:64 bit

The number of CPU cores:6

The number of threads:12

Floating Point Unit:Integrated

Level 1 cache size:6 x 32 KB 8-way set associative instruction caches

6 x 32 KB 8-way set associative data caches

Level 2 cache size:6 x 512 KB 8-way set associative unified caches

Level 3 cache size:16 MB 16-way set associative shared cache

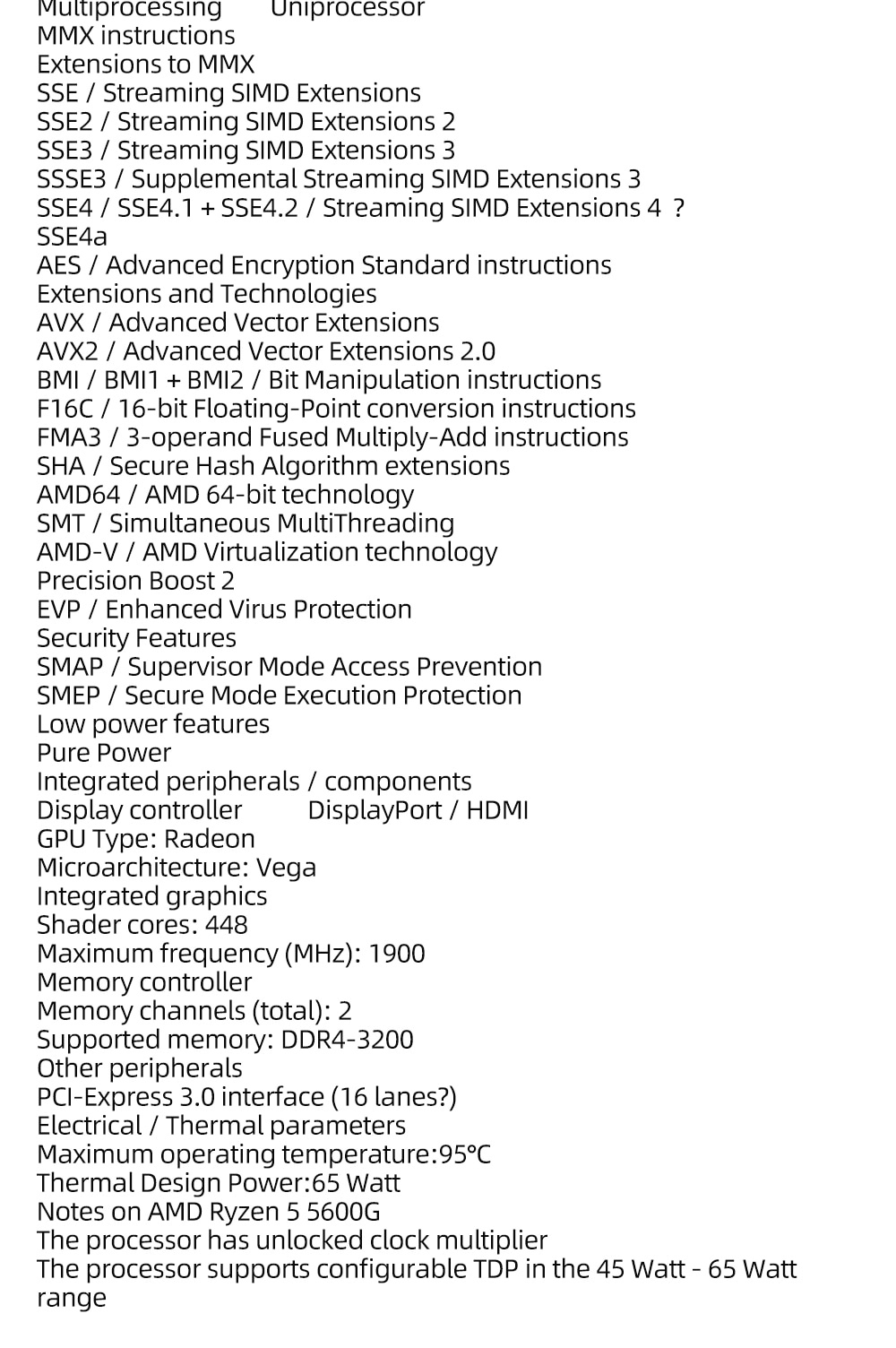

MultiprocessingUniprocessor

MMX instructions

Extensions to MMX

SSE / Streaming SIMD Extensions

SSE2 / Streaming SIMD Extensions 2

SSE3 / Streaming SIMD Extensions 3

SSSE3 / Supplemental Streaming SIMD Extensions 3

SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?

SSE4a

AES / Advanced Encryption Standard instructions

Extensions and Technologies

AVX / Advanced Vector Extensions

AVX2 / Advanced Vector Extensions 2.0

BMI / BMI1 + BMI2 / Bit Manipulation instructions

F16C / 16-bit Floating-Point conversion instructions

FMA3 / 3-operand Fused Multiply-Add instructions

SHA / Secure Hash Algorithm extensions

AMD64 / AMD 64-bit technology

SMT / Simultaneous MultiThreading

AMD-V / AMD Virtualization technology

Precision Boost 2

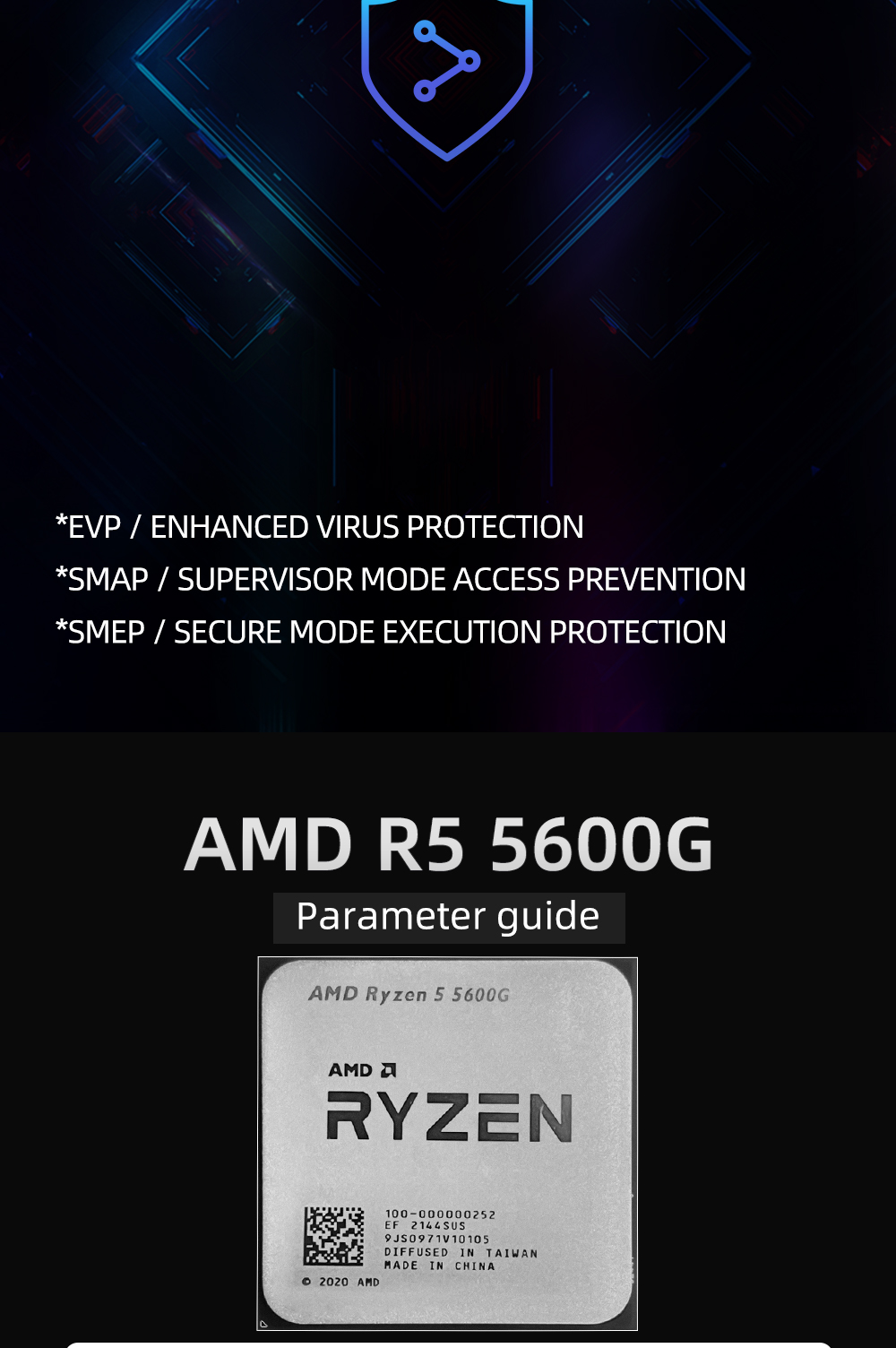

EVP / Enhanced Virus Protection

Security Features

SMAP / Supervisor Mode Access Prevention

SMEP / Secure Mode Execution Protection

Low power features

Pure Power

Integrated peripherals / components

Display controllerDisplayPort / HDMI

GPU Type: Radeon

Microarchitecture: Vega

Integrated graphics

Shader cores: 448

Maximum frequency (MHz): 1900

Memory controller

Memory channels (total): 2

Supported memory: DDR4-3200

Other peripherals

PCI-Express 3.0 interface (16 lanes?)

Electrical / Thermal parameters

Maximum operating temperature:95°C

Thermal Design Power:65 Watt

Notes on AMD Ryzen 5 5600G:

The processor has unlocked clock multiplier

The processor supports configurable TDP in the 45 Watt - 65 Watt range
